Overview of Springs in Engineering
Springs are simple yet essential components in engineering, designed to store and release energy, absorb shocks, and apply force. Their versatility makes them invaluable in a wide range of applications, from everyday household items to complex industrial systems. Springs are found in clocks, vehicles, electronics, machinery, and even medical devices, making them an integral part of modern technology.
At their core, springs work by deforming under a load and returning to their original shape when the load is removed. This ability to temporarily store energy in a compressed or stretched state is what makes springs so useful. Depending on the design and material, springs can handle different levels of force, making them suitable for various functions across industries.
Common Types of Springs

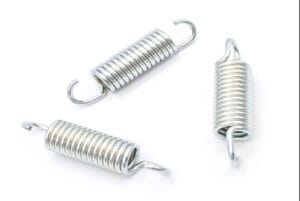

A close-up of an extension spring stretching with hooks on both ends
Springs can be classified based on how the load is applied to them or their structural designs. Here is a detailed look at some of the most common types of springs and their characteristics.Learn the common types of springs, their unique roles in everyday products and heavy machinery, and find out which spring is right for your next project.

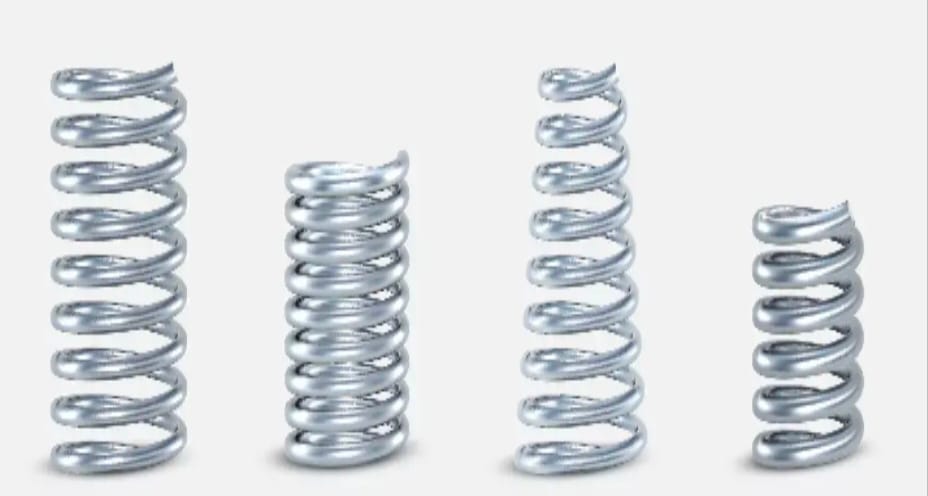

Compression Springs
Compression springs compress under a load and return to their original shape when the load is removed. They are commonly found in shock absorbers, spring mattresses, retractable pens, and mechanical pencils. These springs are designed to resist compressive forces and provide a pushing force, making them essential for absorbing shocks and maintaining stability.
Extension Springs
Extension springs stretch when a tensile force is applied, returning to their original form when the force is removed. These springs are widely used in garage doors, luggage scales, trampolines, and toys like Slinkies. Their hooks or loops at the ends make them easy to attach to mechanisms that require tension.
Torsion Springs
Torsion springs work by twisting and are designed to store and release rotational energy. They are integral to the functionality of clothespins, mousetraps, door hinges, and certain car suspension systems. Their compact design makes them ideal for applications involving torque.
Constant Force Springs
Constant force springs are unique in that they provide nearly the same force regardless of their extension. Made of pre-tensioned metal strips, they are used in applications like clock mechanisms, retractable cords, and adjustable monitor arms. Their ability to deliver consistent force is crucial for smooth and predictable operation.
Linear Springs
Linear springs follow Hooke’s Law, meaning the force applied is proportional to the spring’s displacement. These springs are used in precise applications, such as measuring instruments, balancing systems, and various mechanical assemblies where predictability is vital.
Variable Rate Springs
Variable rate springs have a changing spring rate, offering different levels of resistance as they compress or extend. These springs are commonly cone-shaped and found in battery compartments, heavy machinery, and equipment requiring progressive force handling.
Belleville (Disk) Springs
Belleville springs, also known as disk springs, are disk-shaped components designed to handle heavy loads in compact spaces. They are typically used in clutches, braking systems, and machinery that requires vibration damping or high-load capacity.
Leaf Springs
Leaf springs are flat metal strips layered together to form a curved shape, primarily used in vehicle suspensions. They are excellent for absorbing shocks and distributing loads in trucks, trailers, and other heavy machinery.
Coil Springs
Coil springs are helical springs made by coiling metal wires. These versatile springs are used in automotive systems, light machinery, and consumer products. Their design can be customized for specific functions, making them suitable for a wide range of applications.
Flat Springs
Flat springs are made from sheet metal and come in various shapes and sizes. They are commonly used in electronic devices, clips, and retaining systems. These springs are compact and provide flexibility in confined spaces.
Here’s a table showing the different types of spring in engineering:
Spring Type
Description
Compression Springs
Compress under load and return to original shape when the load is removed. Resists compressive forces.
Extension Springs
Stretch under tensile force and return to original shape when the force is removed.
Torsion Springs
Twist to store and release rotational energy, designed for torque.
Constant Force Springs
Provide nearly the same force regardless of extension, made from pre-tensioned metal strips.
Linear Springs
Follow Hooke’s Law where force is proportional to displacement, providing predictable force.
Variable Rate Springs
Have changing spring rates, offering varying resistance as they compress or extend.
Belleville (Disk) Springs
Disk-shaped springs designed to handle heavy loads in compact spaces.
Leaf Springs
Flat metal strips layered together to form a curved shape, absorbing shocks and distributing loads.
Coil Springs
Helical springs made from coiled metal wires, versatile in various applications.
Flat Springs
Made from sheet metal, available in various shapes, providing flexibility in confined spaces.
Applications of Each Spring Type
Spring’s ability to store and release energy, absorb shocks, and provide motion control makes them invaluable. Here are the applications of different types of springs.
Compression Springs Applications
Compression springs work by resisting compressive forces. This makes them perfect for applications where absorbing shocks or providing stability is necessary.
Automotive Industry: These springs are integral to vehicle suspension systems, helping to absorb shocks from uneven roads for a smoother ride.
Household Products: Found in spring mattresses and retractable pens, compression springs provide flexibility and ease of use.
Industrial Machinery: In heavy equipment, they absorb energy during operation to reduce wear and tear.
Medical Devices: Compression springs are often used in syringes and pumps to control fluid movement.
Extension Springs Applications
Extension springs operate by stretching and returning to their original shape. This characteristic makes them ideal for applications requiring tension.
Garage Doors: These springs help counterbalance the door’s weight, making it easier to open and close.
Luggage Scales: Extension springs measure weight based on the tension created by an applied load.
Toys: Products like Slinkies rely on extension springs for their entertaining movements.
Exercise Equipment: Resistance bands and certain gym machines use extension springs to provide variable tension during workouts.
Torsion Springs Applications
Torsion springs work by twisting to store energy, making them useful in applications requiring rotational motion.
Clothespins: The spring holds the two halves of a clothespin together, providing grip.
Mouse Traps: The spring stores potential energy, releasing it quickly to snap shut.
Automotive Industry: Torsion springs are used in car suspension systems and trunk lids.
Doors and Gates: Found in hinges, they help doors close smoothly and securely.
Constant Force Springs Applications
Constant force springs maintain a steady force over their range of motion, making them suitable for applications requiring consistent tension.
Clocks: These springs store energy to keep mechanical clocks running.
Retractable Mechanisms: Used in power cords and seat belts, these springs allow smooth extension and retraction.
Height-Adjustable Monitors: The spring counterbalances the weight, enabling easy height adjustment.
Medical Equipment: Instruments like retractable syringes rely on these springs for controlled motion.
Linear Springs Applications
Linear springs provide a consistent force, making them highly predictable for precision applications.
Measuring Instruments: Scales and other devices use linear springs for accurate readings.
Balancing Mechanisms: Springs in balances or equalizers ensure uniform force distribution.
Engineering Tools: Used in tools requiring precise control, such as micrometers or calipers.
Variable Rate Springs Applications
Variable rate springs change their stiffness along their length, making them suitable for dynamic applications.
Battery Compartments: Cone-shaped compression springs in battery slots ensure a snug fit.
Automotive Systems: Used in advanced suspension systems to adapt to changing loads or road conditions.
Heavy Machinery: Their ability to handle varying forces makes them useful in industrial equipment.
Belleville (Disk) Springs Applications
Belleville springs are disk-shaped and designed to handle heavy loads in compact spaces.
Clutches and Brakes: They provide consistent pressure in vehicle braking systems.
Vibration Dampening: Used in machinery to reduce vibrations and enhance stability.
Aerospace Applications: Their compact design makes them ideal for high-stress environments in aircraft.
Leaf Springs Applications
Leaf springs are layered metal strips designed to support heavy loads.
Truck Suspension: Commonly used in heavy vehicles like trucks and trailers to absorb shocks.
Railway Systems: Found in train suspensions for stability and smooth operation.
Agricultural Equipment: Used in tractors and other heavy-duty machines.
Coil Springs Applications
Coil springs are helical springs that absorb shocks and provide flexibility.
Automotive Suspension: Essential for smooth rides in cars and trucks.
Household Items: Found in toasters, door locks, and toys.
Industrial Use: Heavy-duty coil springs support large machinery and tools.
Flat Springs Applications
Flat springs are flat metal pieces used in small, precise applications.
Electronic Devices: Found in connectors, clips, and circuit boards.
Medical Tools: Used in surgical instruments for precision and durability.
Clamps and Fasteners: Provide secure holds in mechanical assemblies.
How to Choose the Right Spring for Your Projects

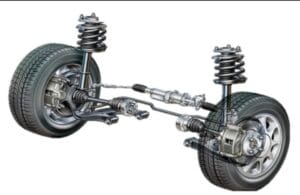

A helical coil spring placed in an automotive system
Springs are crucial components in many projects, and choosing the right one starts with understanding its purpose. Different springs serve specific functions: compression springs absorb shocks, extension springs handle tension, torsion springs manage twisting motions, and constant force springs provide steady tension. Knowing how the spring will function helps narrow down the options and ensures it fits the project’s requirements.
Load capacity, material, and size are critical considerations when selecting a spring. Light loads require less stiff springs, while heavy-duty applications need stronger ones. Material choice, such as steel for versatility, plastic for rust resistance, or alloys for high-stress uses, influences durability and performance. The spring’s dimensions must match your design, and understanding its rate and deflection ensures it performs reliably under load.
Environmental factors and testing finalize the selection process. Outdoor or corrosive conditions call for stainless steel or plastic springs, while high temperatures require heat-resistant alloys. Testing the spring within your project ensures it works effectively under real conditions. Consulting experts can provide valuable insights for choosing the best spring. By carefully considering these factors, you can ensure your project’s success.
Conclusion
Springs may seem like simple components, but their versatility and importance are astounding. From tiny mechanisms in pens to massive industrial machines, each type of spring plays a unique role in making things work seamlessly.
What makes springs remarkable is their ability to adapt to countless uses while remaining reliable and efficient. Understanding the different types of spring isn’t just about knowledge—it’s about seeing the endl
ess possibilities they bring to engineering and design. When next you need spring for your project, you’ll know its purpose and why it matters.
